12V 10A 20A 25A 30A 12V 8A Universal Motorcycle Car Lead-Acid Storage Charger Connector Current Protection Universal

Name: 12V 10A 20A 25A 30A 12V 8A Universal Motorcycle Car Lead-Acid Storage Charger Connector Current Protection Universal
Brand: 12V 10A 20A 25A 30A 12V 8A Universal Motorcycle Car Lead-Acid Storage Charger Connector Current Protection Universal
SKU: 12V 10A 20A 25A 30A 12V 8A Universal Motorcycle Car Lead-Acid Storage Charger Connector Current Protection Universal
Price: 50.88 USD
Availability: InStock
Rating: 4.7 (145 reviews)

MOQ:	10 pieces
Price:	CN¥50.88/pieces 10-99 pieces

Detail Information

Product Description

Detail Information

Type:

Electric, Power Supply Adapter, CAR CHARGER, Fast Charger

Usage:

Universal , Electric Tool, Home Security System, Motorcycle / Scooter, Smart Watch

Material:

PC Fireproof Material, ABS

Protection:

Short Circuit Protection, Ovp, OTP, OLP, Ocp, Low Tension, Over-charging, Overcurrent, Overvoltage

Private Mold:

Yes

Function:

FCP, SCP

Brand Name:

UW-WONG

Model Number:

12V10A

Port:

DC, AC

Input:

12v/10a, 12-24V/5A, 12V/20A

Output:

12V/1.25A

Output Power:

125W

Place Of Origin:

China

Product Name:

Intellegent Lead-acid Battery Charger

Connector:

Current Protection

Output:

12V/24V

Application:

Electric Vehicle E-bike Scooter

Package:

Customized Package

Power:

15W/10W/7.5W/5W Automatic Identification

Feature:

Fast Charging Speed

OEM/ODM:

Accept OEM Orders

Warranty:

12 Months

Charging Efficiency:

90%

Product Description

12V 10A car and motorcycle battery charger intelligent full automatic Lead acid battery charger UK US AU EU

Name	Intelligent 12V 10A lead acid battery charger
Mode	1210A
Input	110Vac or 220Vac
Output	14.7V Float charge voltage:13.8V (for 12V lead acid battery)
Output current	10A
Features:	Temperature control compensation charger
Compatibility	35AH,60AH 80AH lead acid battery
Protection	-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection
Apply to	Children's toy cars, motorcycles, cars, etc.
weight	680g

12V 10A 20A 25A 30A 12V 8A Universal Motorcycle Car Lead-Acid Storage Charger Connector Current Protection Universal 0

The Intelligent 12V 10A lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 100-240Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage: 14.7V Float charge 13.8V

C:Charging Mode Intelligent 12V 6A lead acid battery charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:Intellig

ent 12V 6A lead acid battery charger

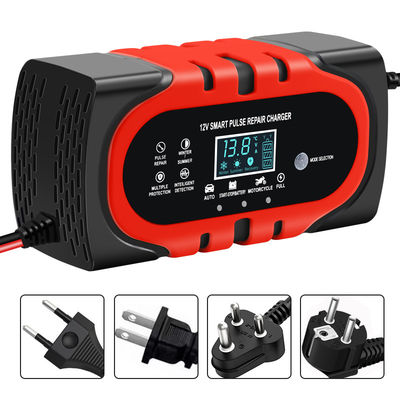

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
